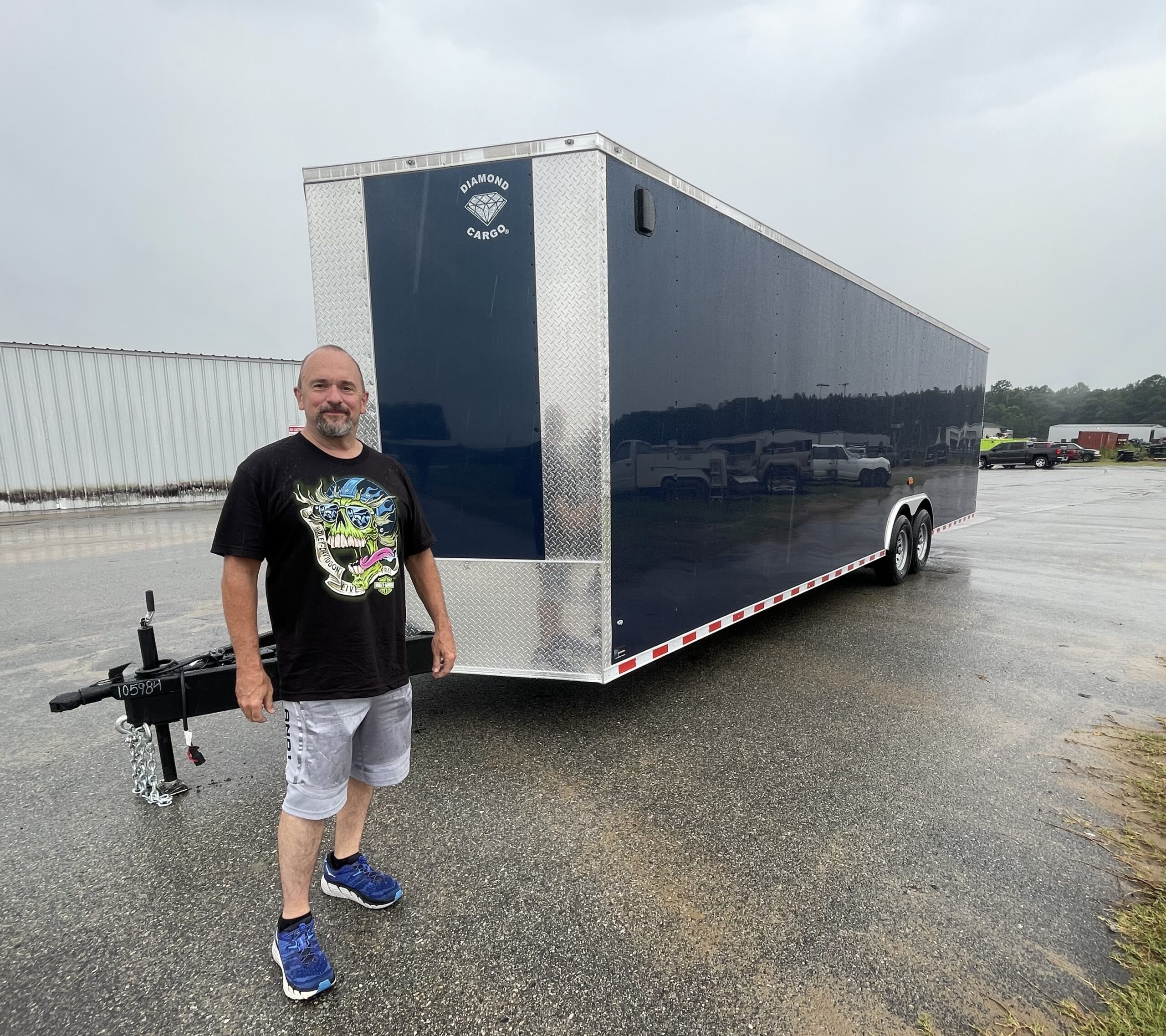

8.5x30 Diamond Cargo Tandem Axle Trailer
$10,435.00
Description
8.5×30 enclosed cargo trailer with tandem axle from Diamond Cargo. Serious length for serious hauling stable and enclosed. Custom built with factory pickup.
Location: Georgia
Standard Features
- 6000lb USA Made Lippert Drop Leaf Spring Axles with Electric Brakes
- Heavy Duty Ramp Door w/ Spring Assist & 16″ Extension Flap
- 7′ (84″) Interior Height
- .080 Polycore Exterior (Semi-screwed)
- 1.5″ x 1″ steel tube in walls and ceiling
- 8″ steel tube main frame
- 16″ OC Members (Floor/Walls/Ceiling)
- 7-way Round Bargman Plug
- 2 5/16″ Coupler
- Therma-Ply Ceiling
- No Show Beavertail
- ATP Front & Rear Corners
- (4) 5000lb D-Rings Welded to Frame
- 36″ x 78″ RV-Style Side Door w/ Flush Lock
- Bar Lock over RV Door
- Door Hold Back
- 24″ Stoneguard on front
- Plastic Sidewall Vents
- (2) 12V LED Dome Light with switch
- ST205 15″ Radial Tires
- Silver Painted Wheels
- 3/4″ plywood floor/undercoated
- Premium 3/8″ plywood sidewalls
- Triple Tube Tongue & E-Z Lube Hubs
- 5000 lb A-Frame tongue jack w/ Sand Foot
- One Piece Aluminum roof
- LED Full Light Package incl. Rear Loading Light
- ATP In Stepwell
- (2) Rear Door Handles
- Empty Weight: 4400 lbs
- GVWR: 9990 lbs
- Load Capacity: 5590 lbs
- TA 6000 lb full 12000 GVWR requires 16″ 6 lug tires
- Triple 6000 lb full 18000 GVWR requires 16″ 6 lug tires
