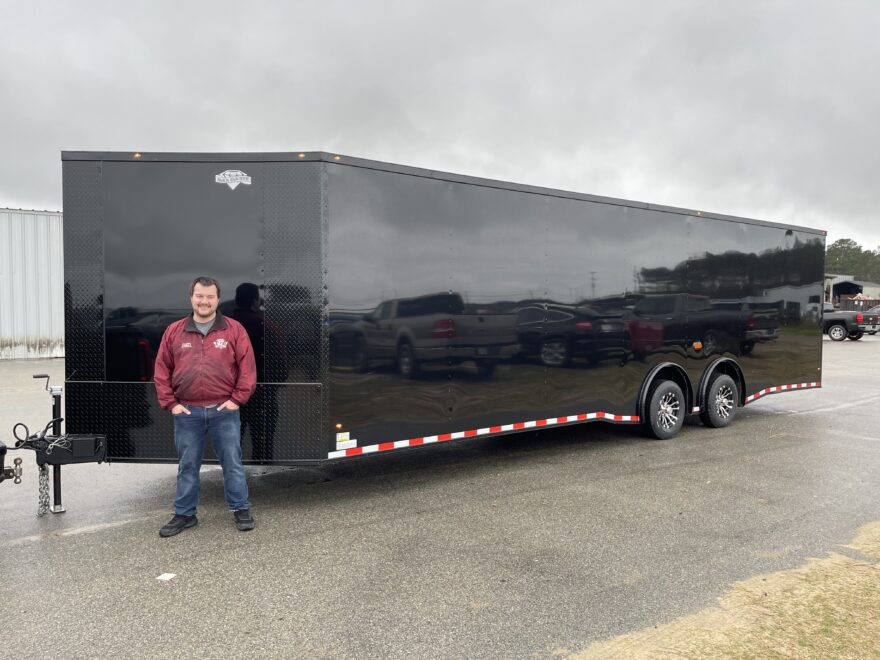

8.5x28 Diamond Cargo Tandem Axle Car Hauler

Budget Bg Budget Bg Sm

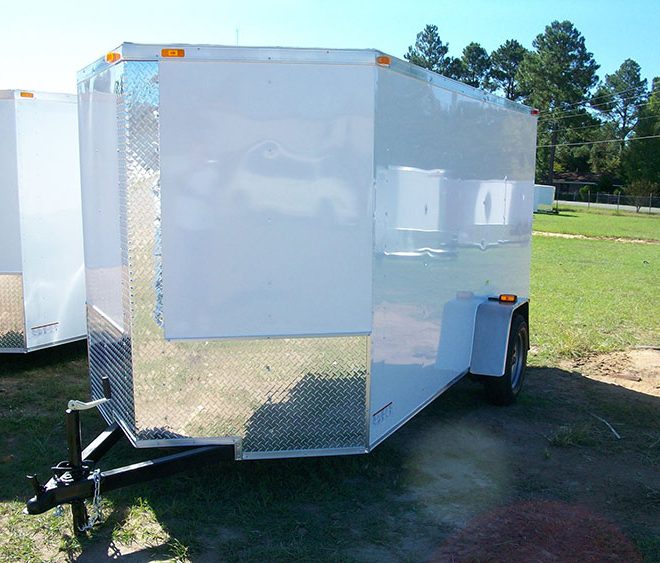

Get a versatile and budget - friendly Cargo Trailer

Satisfy any hauling needs with the most spacious cargo trailers, safely haul cars and other vehicles or design your own concession trailer to fit any type of business! Enjoy superior craftsmanship and premium features on new enclosed trailers with the thickest material in the industry (.080 Polycore) and Semi-Screwed panels for the smoothest and strongest exteriors, 7’ Interior Height, 6000lb USA made axles (instead of the standard 5200 lb), reinforced 8’’ main frame and all 16’’ OC, full LED lighting and more!

  • Choose between barn doors and ramp door at no cost, as well as v-nose or flat front
  • Color options available at no charge (Black, White, Charcoal Grey, Silver Frost, Red, Indigo Blue, Electric Green etc.)
  • Customization Available: Concession trailer options (Sink and water packages, concession doors and windows, Bbq porch etc.), electrical packages, race trailer options and utility options among others
Set up a custom trailer consultation
Video Bg Video Bg Sm

Available on backorder

8.5x28 Diamond Cargo Tandem Axle Car Hauler Standard Features

  • .080 Polycore Exterior (Semi-screwed)
  • 7′ (84″) Interior Height
  • 6000lb USA Made Lippert Drop Leaf Spring Axles with Electric Brakes
  • Heavy Duty Ramp Door w/ Spring Assist & 16″ Extension Flap
  • 1.5″ x 1″ steel tube in walls and ceiling
  • 8″ steel tube main frame
  • 16″ OC Members (Floor/Walls/Ceiling)
  • 7-way Round Bargman Plug
  • 2 5/16″ Coupler
  • Therma-Ply Ceiling
  • No Show Beavertail
  • ATP Front & Rear Corners
  • (4) 5000lb D-Rings Welded to Frame
  • 36″ RV-Style Side Door w/ Flush Lock
  • Bar Lock over RV Door
  • Door Hold Back
  • 24″ Stoneguard on front
  • Plastic Sidewall Vents
  • (2) 12V LED Dome Light with switch
  • ST205 15″ Radial Tires
  • Silver Painted Wheels
  • 3/4″ plywood floor/undercoated
  • Premium 3/8″ plywood sidewalls
  • Triple Tube Tongue & E-Z Lube Hubs
  • 5000 lb A-Frame tongue jack w/ Sand Foot
  • Galvalume roof
  • LED Full Light Package incl. Rear Loading Light
  • ATP In Stepwell
  • (2) Rear Door Handles
  • Empty Weight: 4200 lbs
  • GVWR: 9990 lbs
  • Load Capacity: 5790 lbs
