8.5x16 Diamond Cargo Tandem Axle Trailer
$7,205.00
Description

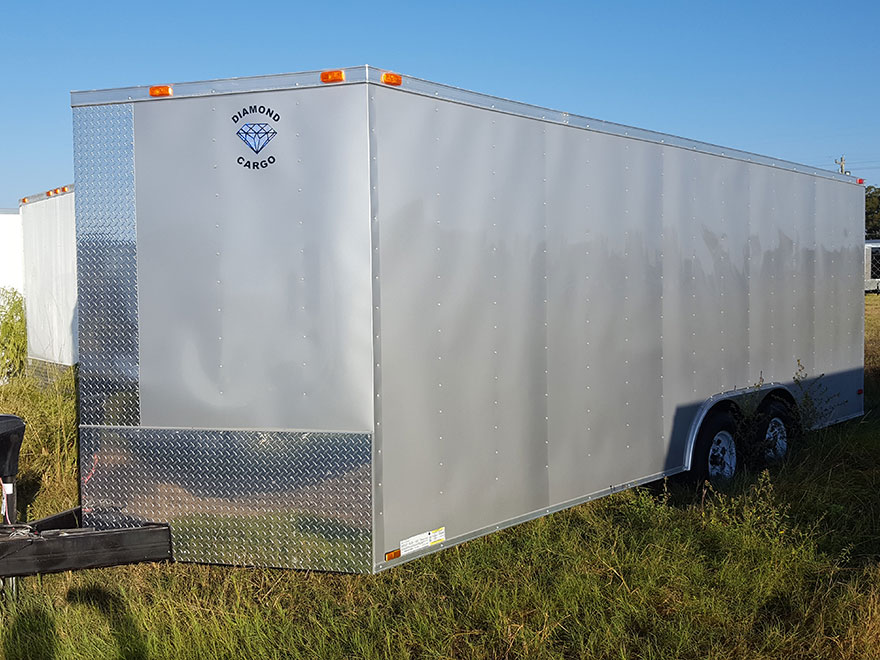

8.5×16 enclosed cargo trailer with tandem axle from Diamond Cargo. Balanced size and strength for work gear or small equipment. Order now and pickup at the factory.
Standard Features
- 3500lb USA Made Lippert Drop Leaf Spring Axles w/ Electric Brakes

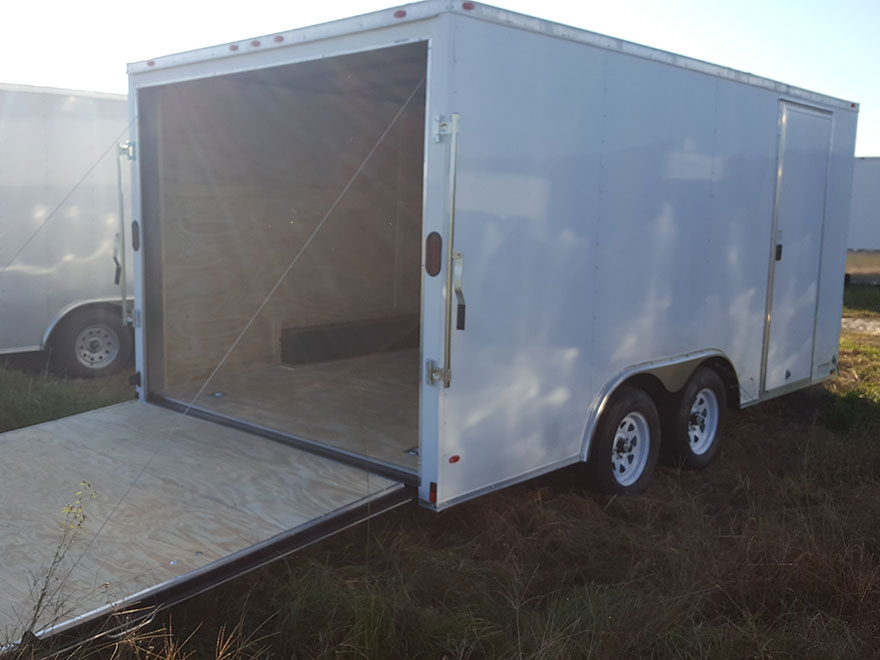

- Heavy Duty Ramp Door w/ Spring Assist & 16″ Extension Flap
- 7′ (84″) Interior Height
- .080 Polycore Exterior (Semi-screwed)
- 1.5″ x 1″ steel tube in walls and ceiling
- 6″ steel tube main frame
- 16″ OC Members (Floor/Walls/Ceiling)
- 7-way Round Bargman Plug
- 2 5/16″ Coupler
- Therma-Ply Ceiling
- ATP Front & Rear Corners
- No Show Beavertail
- (4) 5000lb D-Rings Welded to Frame
- 36″ x 78″ RV-Style Side Door w/ Flush Lock
- Bar Lock over RV Door
- Door Hold Back
- 24″ Stoneguard on front
- Plastic Sidewall Vents
- (2) 12V LED Dome Light with switch
- ST205 15″ Radial Tires
- Silver Painted Wheels
- 3/4″ plywood floor/undercoated
- Premium 3/8″ plywood sidewalls
- EZ Lube Hubs
- 5000 lb A-Frame tongue jack w/ Sand Foot
- Galvalume roof
- LED Full Light Package incl. Rear Loading Light
- ATP In Stepwell
- (2) Rear Door Handles
- Empty Weight: 2800 lbs
- GVWR: 7000 lbs
- Load Capacity: 4200 lbs
- TA 6000 lb full 12000 GVWR requires 16″ 6 lug tires
- Triple 6000 lb full 18000 GVWR requires 16″ 6 lug tires
